PIN-FET光接收组件

PIN-FET(P-Intrinsic-N Field-Effect Transistor) 光接收组件光接收组件是光信号接收部分，起到光电转换并放大信号的作用。线性响应度，线性最小光功率，线性饱和光功率，无光电压，带宽，均方根噪声电压等性能指标参数，这些参数适用于模拟光纤传输系统如光纤传感等领域的应用。 As the optical information receiver of optical receiver system, PIN-FET (P-Intrinsic-N Field-Effect Transistor) acts as voltage amplified optoelectronic converter. Specification Parameters, such as linearity response, minimum linear optical power, linear saturation optical power, 3dB bandwidth S21 are specially defined for the applications of analog optical fiber systems (for example, IFOG & FOCT et al fiber optic sensor).

附件下载

商品信息

商品描述

PIN-FET(P-Intrinsic-N Field-Effect Transistor) 光接收组件光接收组件是光信号接收部分，起到光电转换并放大信号的作用。

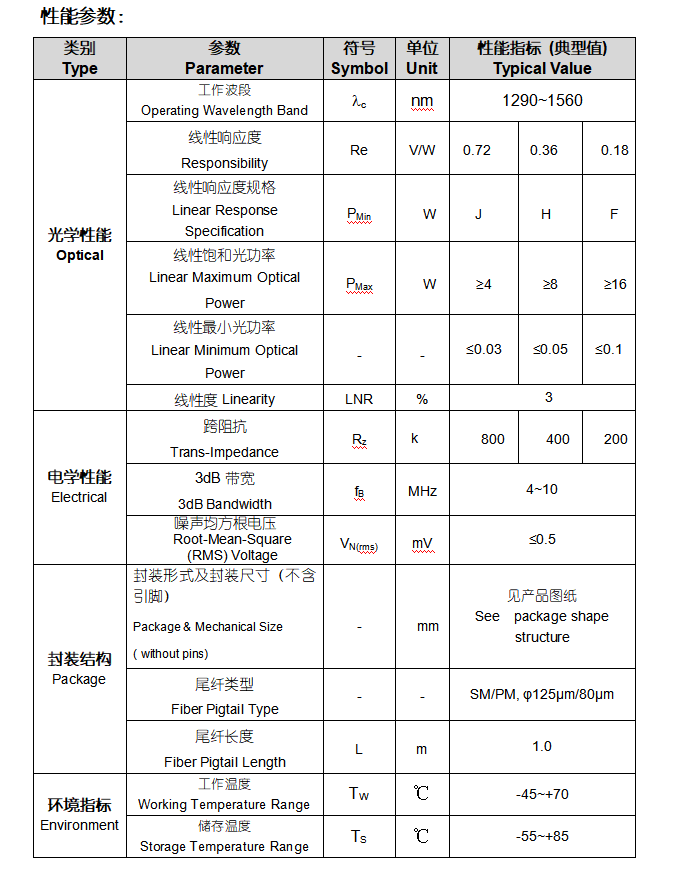

线性响应度，线性最小光功率，线性饱和光功率，无光电压，带宽，均方根噪声电压等性能指标参数，这些参数适用于模拟光纤传输系统如光纤传感等领域的应用。

As the optical information receiver of optical receiver system, PIN-FET (P-Intrinsic-N Field-Effect Transistor) acts as voltage amplified optoelectronic converter.

Specification Parameters, such as linearity response, minimum linear optical power, linear saturation optical power, 3dB bandwidth S21 are specially defined for the applications of analog optical fiber systems (for example, IFOG & FOCT et al fiber optic sensor).

主要特点 Features

l低噪声、高线性度

Low Noise, High Linearity

l相对于不同响应度，相应带宽可调

Bandwidth can be Adjust for Different Responsivity

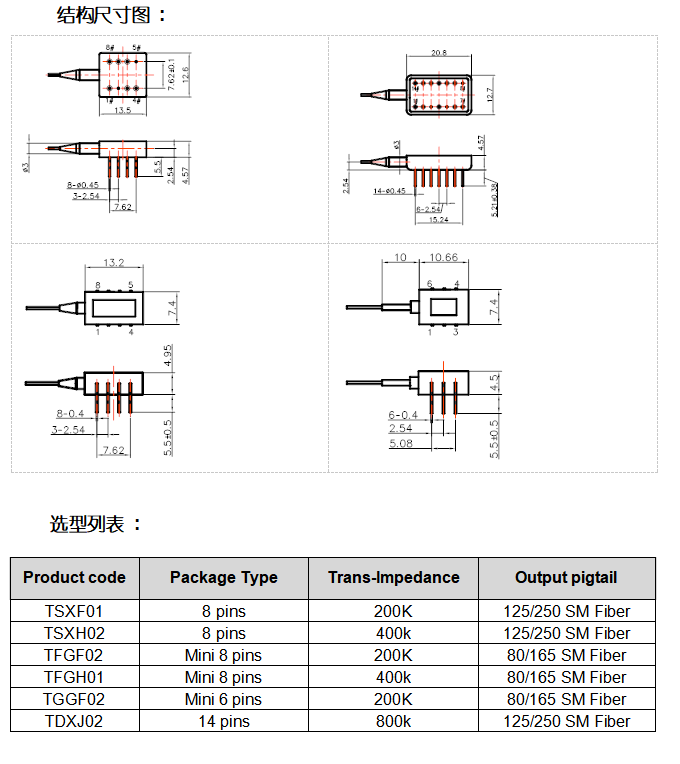

l封装采用8针与14针互兼容金属化结构

Compliance Of 14pins/8pins Package are Replaceable

l良好的性能一致性和质量可靠性应用

lExcellent Consistency and Reliability

l可靠性高

High Reliability
